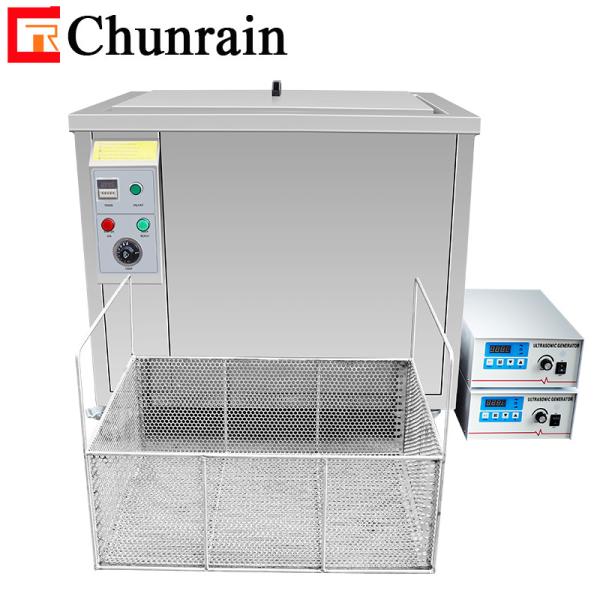

Ultrasonic Cleaner For Auto Parts Wheel Tyre Washing Machine CR-600ST 264L 3000W
Wheel Tyre Washing Machine Features
1. Tank capacity:38~5000Liter,with digital timer & heating contrlo;
2. Cleaning effect will be more better if match with appropriate cleaning agent together
3. with drainage,basket,lid and Multi-direction castors
4. Transducers:High quality,small attenuation,large strength&long life.
5. driver board is independent research and development design production by chunrain
6. ultrasonic generators are independent design and development which is with more stable performance & guaranteed after-sale
Wheel Tyre Washing Machine Parameters
| Model | CR-600ST | Capacity | 264L |
| Frequency | 28KHZ or 40KHZ | Tank size | 800*600*550mm |
| Ultrasonic Power | 0-3000W adjust | Heating power | 6000W |
| Timer | 0-99Hours adjustable | Heater | 20-95℃ adjustable |
| Power Supply | AC 200-240V 50/60Hz
AC 380-440V 50/60Hz | Certification | CE/FCC/ROHS |
Wheel Tyre Washing Machine Models
| Model | Frequency
(KHz) | Capacity
(L) | Inner tank size
(L*W*H MM) | Ultrasonic
power(W) | Heating
power
(W) | Adjustable
time
(MIN) | Adjustable
temperature
(℃) |
| CR-120ST | 28 or 40 | 38 | 500*300*250 | 0~600 | 1500 | 0~99 | 20~95 |
| CR-180ST | 28 or 40 | 61 | 500*350*350 | 0~900 | 1500 | 0~99 | 20~95 |
| CR-240ST | 28 or 40 | 88 | 550*400*400 | 0~1200 | 3000 | 0~99 | 20~95 |
| CR-300ST | 28 or 40 | 108 | 600*450*400 | 0~1500 | 3000 | 0~99 | 20~95 |
| CR-301ST | 28 or 40 | 96 | 800*300*400 | 0~1500 | 3000 | 0~99 | 20~95 |
| CR-360ST | 28 or 40 | 135 | 600*500*450 | 0~1800 | 4500 | 0~99H | 20~95 |
| CR-480ST | 28 or 40 | 175 | 700*500*500 | 0~2400 | 6000 | 0~99H | 20~95 |
| CR-600ST | 28 or 40 | 264 | 800*600*550 | 0~3000 | 6000 | 0~99H | 20~95 |
| CR-720ST | 28 or 40 | 360 | 1000*600*600 | 0~3600 | 9000 | 0~99H | 20~95 |
| CR-900ST | 28 or 40 | 560 | 1000*800*700 | 0~4500 | 12000 | 0~99H | 20~95 |
| CR-1108ST | 28 or 40 | 540 | 1000*900*600 | 0-5400 | 18000 | 0~99H | 20~95 |
| CR-1144ST | 28 or 40 | 960 | 1200*1000*800 | 0-7200 | 24000 | 0~99H | 20~95 |
| CR-1216ST | 28 or 40 | 1500 | 1500*1000*1000 | 0-10800 | 27000 | 0~99H | 20~95 |
OEM&ODM
1. Inner tank size:It can be customized according to customer's product size & cleaning quantity.
2. Ultrasonic power:It can be customized according to?the cleaning tank capacity. The larger the capacity, the more ultrasonic power is needed.
3. Ultrasonic frequency: 20/25/28/35/40/60/68/80/168/200 KHZ can be choosed, 28/40 KHZ is the most commonly used.
4. Ultrasonic generator: There are split-type and?integrated type?can be choosed. The default is split-type and we can make?integrated type according to customer's requirements.
5. Ultrasonic direction: Bottom shock and side shock. Bottom shock?is the most commonly used. Transducers can be installed at the bottom and side?if the product is bigger and?structure is?more complex.
6. Inner tank material: Stainless Steel SUS304/SUS316, the most commonly used is SUS304, we kindly?recommended to use the stronger acid alkali SUS316?if the cleaning agent you will be used is strong acid or strong base.
7. Outer plate material: The material has drawing plate and mirror plate optional, commonly used is drawing plate.
8. Stick Brand: We can stick the customer brand according to the authorization of the customer. The default is ChunRain Brand.
9. Function customized: Full-Automatic Equipment, Through-Type equipment, Filtration circulation system, High-pressure spraying, Bubbling, Drying, Lifting, Throwing, Cooling, Slow pulling and other functions
Application Field
| Scientific Labs | - Eyeglass Frames
- Lab Glassware
- Optical & Contact Lenses
- Pipettes
- Scientific Instruments
- Test Tubes
| Industrial Manufacturing | - Assemblies
- Gears
- Metal & Plastic Parts
- Precision Bearings
- Relays & Motors
- Switches
|
| Electronics Manufacturing | - Capacitors
- Ceramic Substrates
- PC Boards
- Packaging Components
- Quartz Crystals
- SMDs
| Medical & Dental Lab | - Burs
- Blood Oxygenators
- Cannulae
- Dental Instruments
- Syringe Parts
- Surgical Instruments
|
Jewelry Manufacturing | - Chains
- Charms
- Coins
- Intricate Settings
- Precious Metals & Gemstones
- Watches
| Auto Industry | - Engine Parts
- Carburetor
- Castings
- Fuel Injectors
- Machined Parts
- Stamped Parts
- Switches
|
